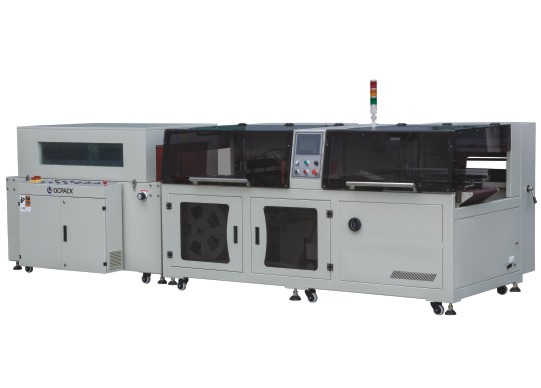

This machine adopts advanced side sealing and reciprocating type horizontal sealing technology. Have continuous sealing actions. Servo control series could realize excellent shrink packaging in the condition of high efficiency. Servo motor controls the actions. During the high speed running procession the machine will act stable, reliable and make the products delivery smoothly during the continuous packaging to avoid the situation that products slide and displaced.
Automatic Grade: Automatic
Driven Type: Electric
Suitable shrink film: POF
Application: suitable for big size packing, no limit for length, width can be 400mm.
This machine adopts advanced side sealing and reciprocating type horizontal sealing technology. Have continuous sealing actions. Servo control series could realize excellent shrink packaging in the condition of high efficiency. Servo motor controls the actions. During the high speed running procession the machine will act stable, reliable and make the products delivery smoothly during the continuous packaging to avoid the situation that products slide and displaced.
Automatic Grade: Automatic
Driven Type: Electric
Suitable shrink film: POF
Application: suitable for big size packing, no limit for length, width can be 400mm.
This machine adopts advanced side sealing and reciprocating type horizontal sealing technology. Have continuous sealing actions. Servo control series could realize excellent shrink packaging in the condition of high efficiency. Servo motor controls the actions. During the high speed running procession the machine will act stable, reliable and make the products delivery smoothly during the continuous packaging to avoid the situation that products slide and displaced.
Automatic Grade: Automatic
Driven Type: Electric
Suitable shrink film: POF
Application: suitable for big size packing, no limit for length, width can be 400mm.
This machine adopts advanced side sealing and reciprocating type horizontal sealing technology. Have continuous sealing actions. Servo control series could realize excellent shrink packaging in the condition of high efficiency. Servo motor controls the actions. During the high speed running procession the machine will act stable, reliable and make the products delivery smoothly during the continuous packaging to avoid the situation that products slide and displaced.
Automatic Grade: Automatic
Driven Type: Electric
Suitable shrink film: POF
Application: suitable for big size packing, no limit for length, width can be 400mm.
|
Model |
BTH-450GS |
BM-500L |
|
Max packing size |
(L)No limited (W+H) ≤400mm (H) ≤150mm |
(L)No limited x(W)450 x(H)250mm |
|
Max sealing size |
(L)No limited (W+H) ≤450mm |
(L)1500 x (W)500 x (H)300mm |
|
Packing Speed |
60～120 packs/min |
0-30m/min |
|
Electric Supply & Power |
220V/50Hz 5kw |
380V/50Hz 16kw |
|
Max Current |
10A |
32A |
|
Air Pressure |
6kg/cm3 |
/ |
|
Weight |
1200kg |
470kg |
|
Overall Dimensions |
(L)2610 x (W)1410 x (H)1300mm |
(L)1800×(W)1100×(H)1300mm |
